1. Referenzwerte aktivieren

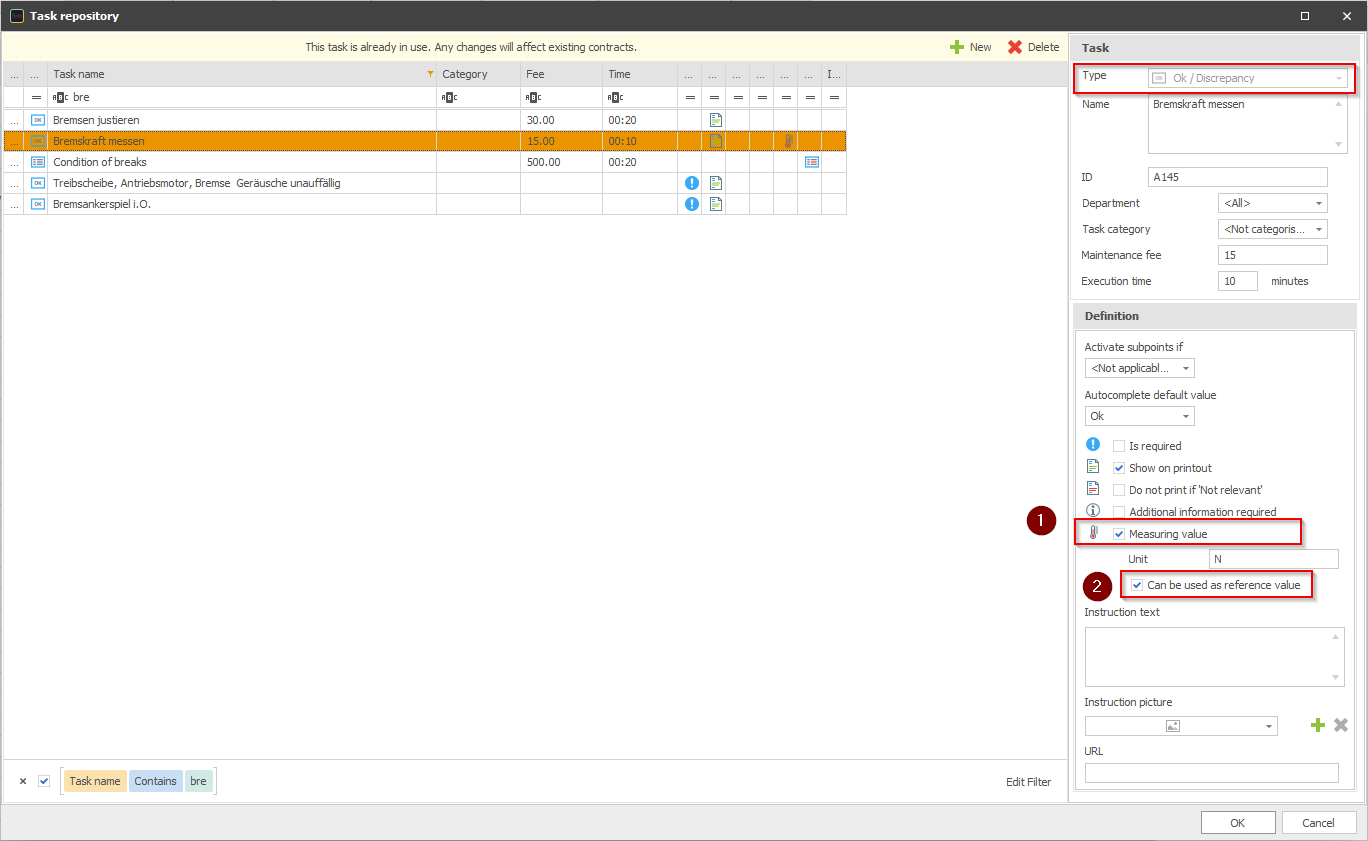

First, define a service task that
(1) requires a measurement value or a task of type "Number"
(2) where the option "Can be used as reference value" is active
2. Referenzwerte definieren

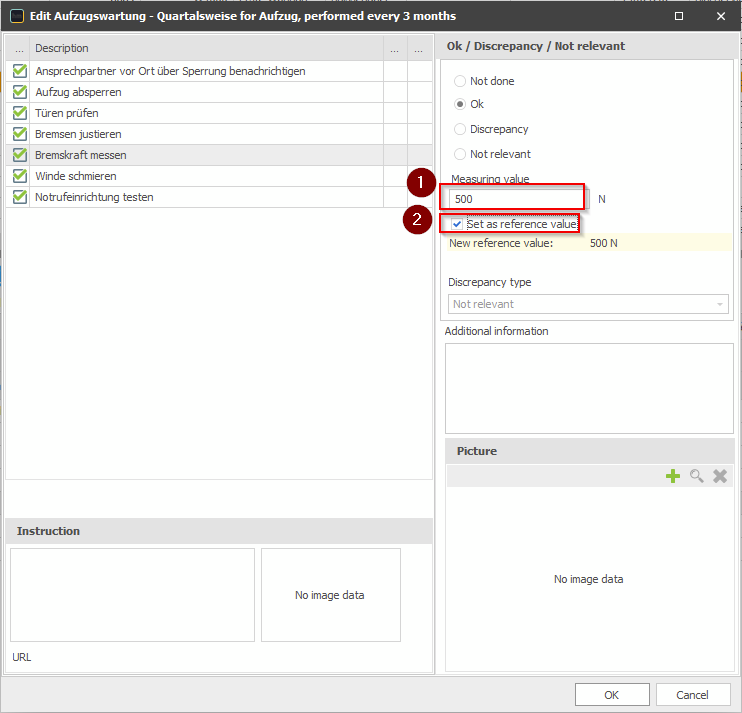

When editing a service form in a service order, the user can set a measurement value as reference value:
(1) Enter the measurement value
(2) Check the checkbox "Set as reference value"
The same functionality is available in Handyman Mobile.
3. Use reference values when entering new data

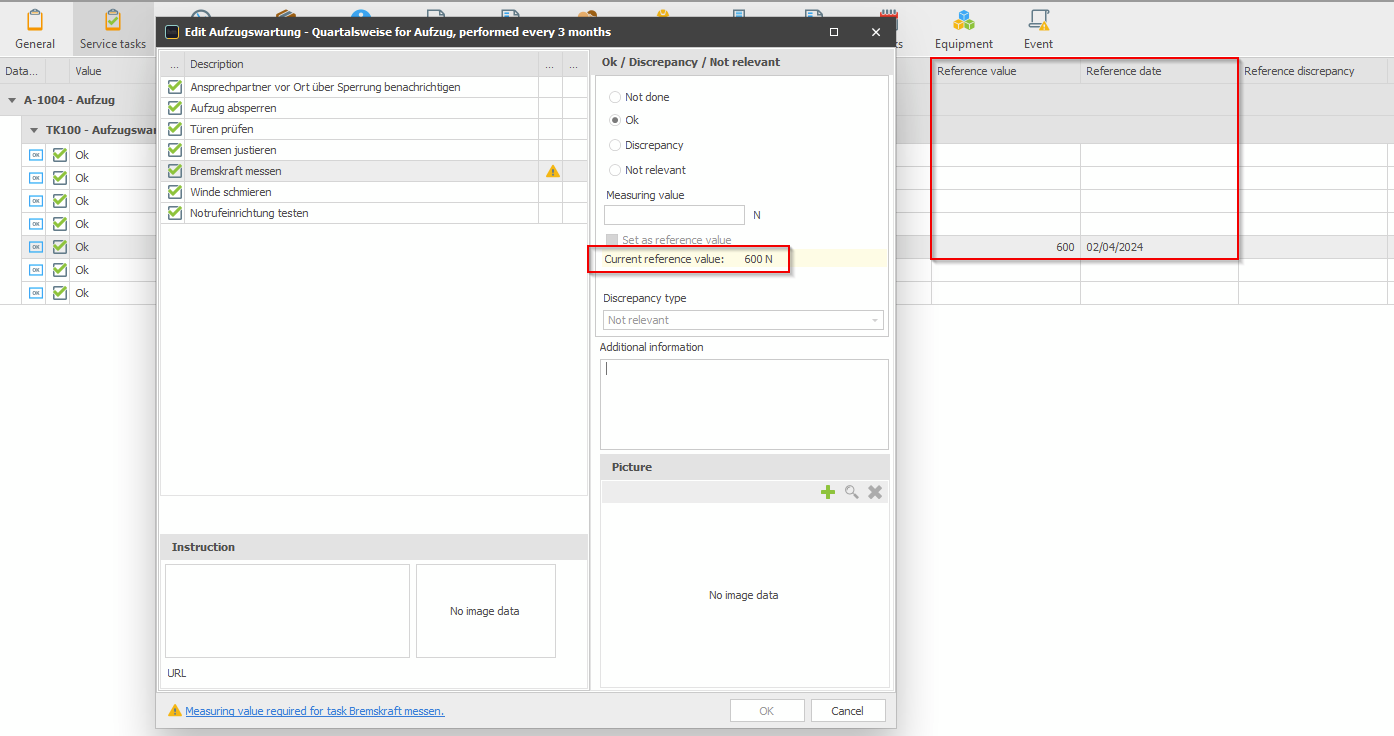

Previously stored reference values for the equipment are shown when the same service form is filled again for the same equipment:
The reference value and the deviance is also shown on the report for the service form.
The same functionality is available in Handyman Mobile. Here it is also possible to see a graph for the measurement value and the reference value:
|

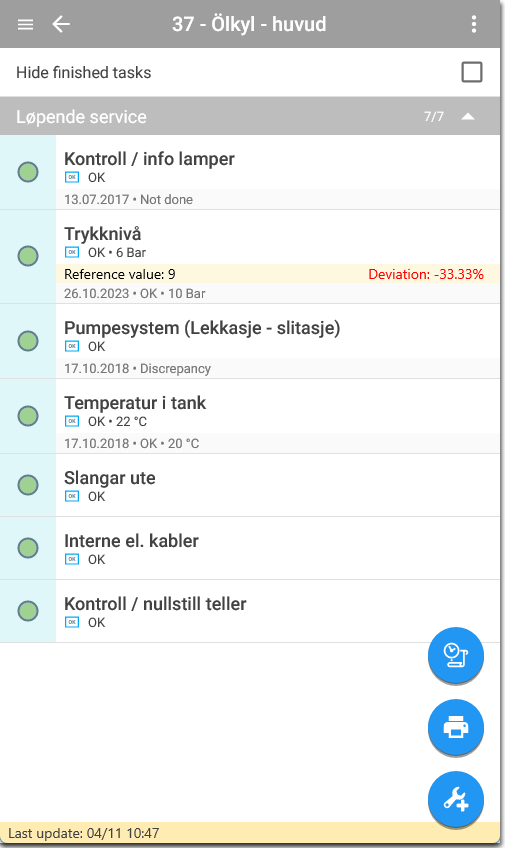

Service form where tasks with reference values exists. |
|

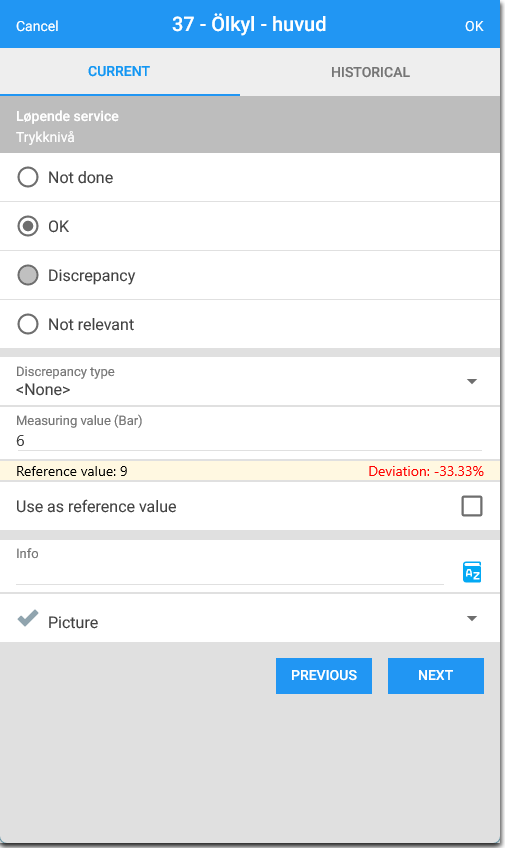

Edit service tasks immediately gives indication of deviation, and adds possibility to set new reference value. |
|

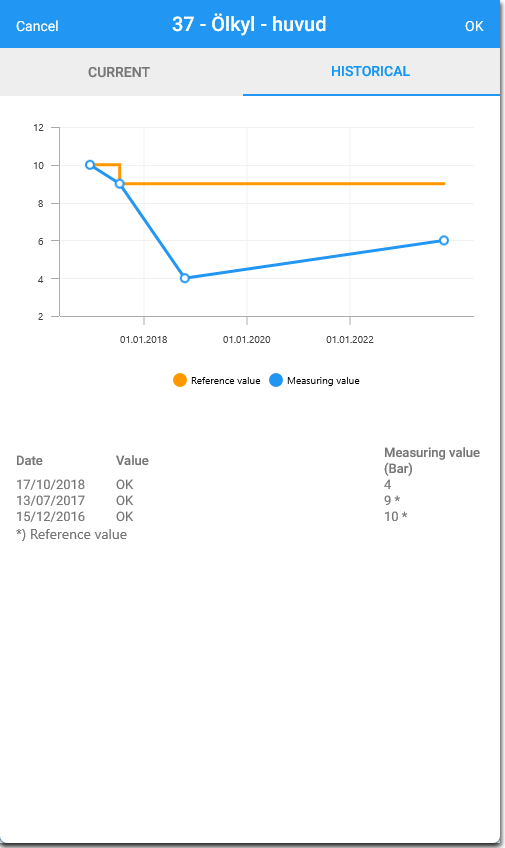

Graph of historical values show both reference value, historical registrations and current registration. |
